• 2 Horse Angle Standard Horse Float

    Our 2 Horse Angle Load - Standard Horse Float, offers both comfort and style for your horse during transportation. This Gladiator Horse Float model is very easy to drive around. We offer many additional features to this model horse float that we include at no additional cost to you.

    If your looking for a horse float that not only looks good but offers comfort and style for your beloved horse then look no further than the Gladiator 2 Horse Angle Load Standard Horse Float.

    We make the Horse Bays Facing either Left or Right as well as Reverse facing Left or Right.

  • Horse Float Measurements

    Inside Dimensions:
    Length: 3235mm
    Width: 1980mm
    Height: 2200mm
    Extended Height: 2300mm Optional extra $600
    Weight:1300kg approximately (without added extras)

  • Horse Float Price

    $23,800.00 (incl. GST)

  • 2 Horse Float Angle Load - Specifications

    Horse Float:

    Chassis material - Galvanised, Frame Material - Galvanised, Body panel - Aluminium, Wheel Rims - 4 x 14' Mag, Wheels, Spare 14' Mag Wheel under Lock and key, 2 x 50mm solid Axles, Roll Rocker Tandem Suspension 7 springs, Double Axle Electric Brakes, Breakaway System Fitted to Float (Independent braking system that activates itself when float becomes detached from towing vehicle).

    We also make our floats partially aluminium - the frame and chassis are still steel for strength and flexibility, but the outside sheeting / cladding is aluminium, thicker aluminium and same strength as steel and still corrugated for strength where the horses are. By having the sheeting aluminium, we are lessening the weight and also eliminating rust forever as aluminium does not rust. Basically, everything that is non-structural is now aluminium. Plus, the benefit for the horses is that it is actually cooler inside the float than your standard steel float. Steel absorbs heat and retains it so it stays hot for a long time BUT aluminium dissipates heat and leaving the float walls cool to touch which in turn makes it cool inside the float. Its a win for both humans and horses so to speak.

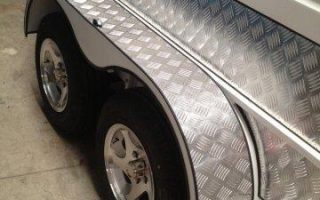

    3 Sliding Windows Tinted and with fly screen,4 Pop Up Vents approx:-400mm x 250mm, Pop Up Barn Doors with high intensity anti rust struts and special copper hinges, Optional - Swing Open to side Barn Doors, Ramp Door fitted with high intensity anti rust struts, Draw bar filled in with Checker Plate, Mudguard covered with Checker Plate, Filled in Checker Plate on Rear Light Panels, 2 Draw bar Safety Chains, Fully Padded Dividers and Rump pad, 2 internal Tie Up points per side - one for horse and the other for feed bag, 4 Stainless Steel recessed tie up rings on the outside of the float. Enclosed Side Rug Rack, Swing out Tack Box fully lined with 2 saddle racks and bridle hooks.

    Horse Float Paint Work: Painted with 2 pack paint. White as standard with black trim around windows, side door, barn doors and black and aluminium trim around roof join on float.

    Horse Float Lighting:
    2 sets of Rear LED Lights per side - 2 x Brake Lights,2 x Amber Indicator lights and one Reverse Light, 6 Side Amber Lights, 8 Retro Reflectors. Internal 12v LED lights - one above front entry door and 2nd at rear of float for nighttime loading.

    Horse Float Flooring:
    None slip rubber floor matting.... fully sealed and waterproof, none slip rubber matting for ramp door with extra footing support with moulded horizontal slats/panels down the tailgate, Rubber matting on side wall panels to kick board and paw board.

    Horse Float Reinforced Chassis:

    We install a safety feature in the float so that no horses can ever go through the float floor.

    A 4mm thick aluminium plate /sheet gets installed in the chassis. How the aluminium sheet works is it guarantees that your horses will never go through the floor of your float. First you have the already reinforced chassis which we use square tubing not angle bar across the width of the float along whole length of the float at 500mm apart ,then the 4mm aluminium plate and then the 22mm honeycomb and then the non-slip rubber and that is all glued down so that the floor becomes waterproof and you can wash the float out - the more the better.

    This is now a super strong floor guaranteed that your horses will never go through the floor of a Gladiator Float!


    Measurements are taken from the middle of the front bay to the middle of the back bay.

    • 1st Bay 2350mm (Bay closest to front window)
    • 2nd bay 2450mm



  • Need Further Information about our Horse Floats?

    Should you need further information or have questions relating to this horse float or any other horse float on this website, please contact us by completing the contact form or contact us by calling 1300 445 234
