• 3 Horse Angle Standard Horse Float

    Gladiator Horse Floats presents to you our 3 Horse Angle Load - Standard Horse Float. This 3 Horse Angle Load Horse Float offers every aspect of style and comfort for your horses during transportation. This Horse Floats offers a range of options for customisation and is the perfect horse float if you are seeking a 3 Angle Horse Float.

    Flexible and Easy to transport around, this horse float offers a many more optional features added at no additional cost.

    We make the Horse Bays Facing either Left or Right as well as Reverse facing Left or Right.

  • Horse Float Measurements

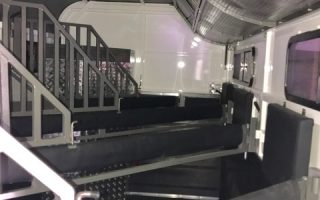

    Inside Dimensions:
    Length: 4555mm
    Width: 1980mm
    Height: 2225mm
    Extended Height: 2325mm Optional Extra $800
    Tare Weight: Approx: 1500kg
    Gross Weight:
    3500kg

  • Horse Float Price

    $29,800.00 (incl. GST)

  • 3 Horse Angle Load – Standard Float Specifications

    Chassis material - Galvanised, Frame Material - Galvanised, Body panel - Aluminium, Wheel Rims - 4 x 14' Mag Wheels, Plus Spare 14' Mag Wheel under Lock and key, Plus Spare Wheel Mounted above Drawbar or where you prefer. 2 x 50mm Solid Axles, Roll Rocker Tandem Suspension 8 Springs, Double Axle Electric Brakes, Breakaway System Fitted to Float (Independent braking system that activates itself when float becomes detached from towing vehicle). 5 sliding Windows tinted and with fly screen, 4 Pop Up Vents approx: 400mm x 250mm.

    We also make our floats partially aluminium -the frame and chassis are still steel for strength and flexibility, but the outside sheeting/cladding is aluminium, thicker aluminium and same strength as steel and still corrugated for strength where the horses are. By having the sheeting aluminium we are lessoning the weight and also eliminating rust forever as aluminium does not rust. Basically, everything that is non structural is now aluminium.

    Plus the benefit for the horses is that it actually cooler inside the float than your standard steel float.  Steel absorbs heat and retains it so it stays hot for a longer time inside the float BUT aluminium dissipates it and leaving the float walls cool to touch which in return makes the float cool inside the float. Its a win for both humans and horses so to speak.

    Pop Up Barn Doors with high intensity anti rust strut and special copper hinges or Swing Open Barn Doors , Ramp Door fitted with high intensity anti rusts strut, Draw bar filled in with Checker Plate, Mudguard covered with Checker Plate, Filled in Checker Plate on Rear Light Panels, 2 Draw bar Safety Chains, Fully Padded Dividers and rump Pad. 4 Stainless Steel recessed tie up rings on the outside of the float. Fully lockable float.

    Horse Float Lighting:
    Rear LED Lights with Reverse Light, 6 Side Amber Lights, 8 Retro Reflectors. Internal 12v LED lights - one above front entry door and one at rear for night time loading.

    Horse Float Tailgate:
    None slip rubber floor matting on tailgate  ....fully sealed and waterproof, None slip rubber matting for ramp door with extra footing support with horizontal mounded rubber panels, Rubber matting on kickboard and pawboard.

    Horse Float Reinforced Chassis:

    We install a safety feature in the float chassis so that no horses can ever go through the float floor.

    A 4mm thick aluminium plate /sheet gets installed in the chassis in all our floats.

    First you have the already reinforced chassis which we use square tubing not angle bar across the width of the float along the whole length of the float at 500mm apart. Then we use angle bar lengthways to brace everything together and it becomes like a chess board. Then we place the 4mm aluminium plate on top and then the 22mm honeycomb flooring and then the non-slip rubber and everything is glued down so that the float becomes waterproof and you can wash the float out the more the better. The layering of the different materials also can help eliminate road noise.

    This is now a super strong floor guaranteed that your horses will never go through the floor of a Gladiator Horse Float !

    Horse Float:
    Fully enclosed Side Rug Rack, Swing out Tack Box Fully lined with 3 saddle holders and bridle hooks. Tinted windows and fly screen on all windows.

    Horse Float Paint Work:  2 pack paint work White as standard with black trim around windows, side door, barn doors and black and aluminium trim around top side of the horse float.



    Horse Float Bay Dimensions:
    Measurements are taken from the middle of the front bay to the middle of the back bay.

    • 1st Bay 2500mm (Bay closest to front window) Horse is standing in cone of the horse float
    • 2nd Bay 2600mm
    • 3rd bay 2600mm

    The bay measurement of the Horse Transport Truck is 2280mm. We measured 2 separate Horse Transport trucks that are used for the transport of race horses which are usually between 15h - 17h. The horses in the trucks stand in their bays sideways (not on an angle), this gives you some indication of the length of our bays compared to the Horse Transport Truck bays. Weight - 1650kg approximately before additional optional extras added.

  • Need Further Information about Gladiator Horse Floats?

    Should you need further information or have questions relating to this horse float or any other horse float on this website, please contact us by completing the contact form or contact us by calling 1300 445 234
