The Gladiator Horse Float ~ 2 Horse Angle Load Luxury Horse Float, is the perfect horse float for that special horse. This particular Horse Float is so easy to drive around and has many features to the horse float that are added at no additional cost. If your looking for that perfect 2 Horse Angle Horse Float then here is one that offers both comfort and style for your beautiful horse.
If you have any questions regarding this horse float, simply complete the enquiry form provided on this page and one of our horse float specialists will be contact you to answer any questions you may have regarding the Gladiator 2 Horse Angle Load Luxury Horse Float.
We make the Horse Bays Facing either Left or Right as well as Reverse facing Left or Right.
Inside Dimensions:
Length: 4095mm
Width: 1980mm
Height: 2225mm standard height
Extended height: 2325mm Optional extra $700
Bay Length Standard: 2500mm - Horses up to approx. 14 -15hh
Bay Length Semi Standard: 2600-2700mm - Horses up to approx. 16hh
Bay Length Extended: 2800mm - Horses up to 17hh
Horses 17hh plus recommended the 2 Horse Angle Luxury Warmblood Float
Tare Weight: Approx: 1500kg
Gross Weight: 3000kg
$29,800.00 (incl. GST)
Chassis material - Galvanised, Frame Material - Galvanised, Body panel - Aluminium, Wheel Rims - 4 x 14' Mag Wheels, Plus Spare 14' Mag Wheel under Lock and key.
2 x 50mm solid Axles, Roll Rocker Tandem Suspension 8 springs, Double Axle Electric Brakes, Breakaway System Fitted to Float ( Independent braking system that activates itself when float becomes detached from towing vehicle).
We also make our floats partially aluminium -the frame and chassis are still Steel for strength and flexibility but the cladding /sheeting is aluminium, thicker aluminium and same strength as steel and still corrugated for strength where the horses are and having the sheeting aluminium, we are lessening the weight and also eliminating rust for ever as aluminium does not rust. Basically, everything that is non-structural is now aluminium.
Plus, the benefit for the horses is that it is actually cooler inside the float than your standard steel float. Steel absorbs heat and retains it so it stays hot in the float BUT aluminium dissipates it leaving the float walls cool to touch which in turn it makes it cool inside the float. Its a win for both human and horses so to speak.

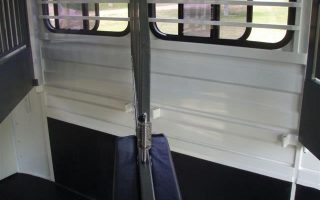

2 Big Square Sliding Windows at horses heads and 3 oblong windows all Tinted and with fly screens, 4 Pop Up Vents approx: 400mm x 250mm, Pop Up Barn Doors with high intensity anti rust strut and special copper hinges or Swing Open Barn Doors with 4 pop up air vents, Ramp Door fitted with high intensity anti rusts strut, Draw bar filled in with Checker Plate, Mudguard covered with Checker Plate, Filled in Checker Plate on Rear Light Panels. 2 Draw bar Safety Chains, Fully Padded Dividers and rump pads, 4 Stainless Steel recessed tie up rings on the outside of the float.2 Tie Up point in each bay - one for the horses and the second for the feed bag, Fully Enclosed Rug Rack, Swing out Tack Box with 2 saddle Racks and bridle hooks, Cupboards and wardrobe in cone of float
Horse Float Lighting:
Rear LED Lights, 6 Side Amber Lights, 8 Retro Reflectors. Internal 12v LED lights - one at entry door and second at rear for night time loading.
Horse Float Flooring:
None slip rubber floor matting ....fully sealed and waterproof, None slip rubber matting for ramp door with extra footing support with horizontal mounded rubber panels, Rubber matting on side panels to kick and paw boards
Horse Float Reinforced Chassis :
We install a safety feature in the float so that no horses can ever go through the float floor.
A 4mm thick aluminium plate/sheet gets installed in the chassis.
How the aluminium sheet works is it guarantees that your horse will never go through the floor of a Gladiator Float.
First you have already the reinforced chassis which we use square tubing not angle bar across the width of the float along the whole length of the float at 500mm apart, then we use angle bar lengthways to brace everything together, then a 4mm aluminium plate and then the 22mm honeycomb flooring and then the non slip rubber and that is all glued down so that the float becomes waterproof and you can wash the float out - the more the better.
...this is now a super strong floor guaranteed that your horses will never go through the floor of a Gladiator Float !
Horse Float Paint Work: 2 pack paint work - White as standard with black trim around windows, side door, barn doors and black and aluminium trim around top side of float.
Horse Float Luxury Interior:

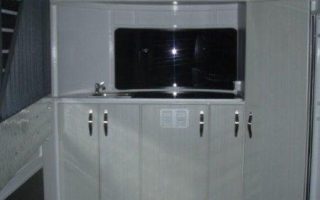

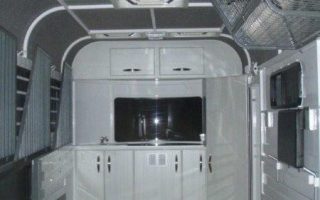

Cupboards in cone of float with above window cupboard, full-length wardrobe and lined marine carpet roof.
Horse Float Kitchenette Package - Optional Extra $3000

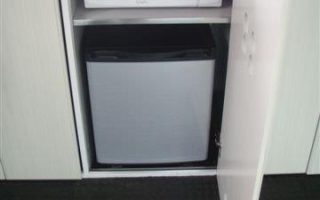

240V electricity connected to float; 240V & 12V Fridge, microwave, 65 litre water tank under float above axles with stainless steel sink and tap , 12V pump water pump , external Tap , 240V internal light with On & Off switch, 2 x double power points one on the bench and the other double power point inside the cupboard, 3 x 12v lights - one above entry door , one above bench top and one at rear for night loading
Want this Horse Float Customised? We can cater to your horse float requirements. Simply let us know what additions you would like made to this horse float and the additions can be made to suit.
Horse Float Standard Bay Dimensions:
Measurements are taken from the middle of the front bay to the middle of the back bay
Standard bay sizes are 2500mm and can be extended up to 2800mm for 16hh plus horses.
The bay measurement of the Horse Transport Truck is 2280mm. We measured 2 separate Horse Transport trucks that are used for the transport of race horses which are usually between 15h - 17h. The horses in the trucks stand in their bays sideways (not on an angle), this gives you some indication of the length of our bays compared to the Horse Transport Truck bays. Weight - 1600kg approximate.
Should you need further information or have questions relating to this horse float or any other horse float on this website, please contact us by completing the contact form or contact us by calling 1300 445 234
At Gladiator Horse Floats we offer a range of horse floats that are built for comfort for your horse during transportation. Our Horse Floats are built to perfection and to the highest manufacturing standard.
With Over 20 Years of steel manufacturing and fabrication, we know our Horse Floats! We offer solid, elegant and comfortable horse floats throughout Australia at affordable prices!
