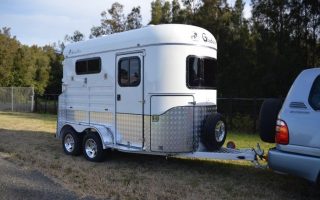

Gladiator Horse Floats 2 Horse Straight Load - Luxury Horse Float, is a perfect horse float for that special horse.
The horse float has many added extras compared to the 2 Horse Straight Load - Standard Model.

Chassis material - Galvanised, Frame Material - Galvanised, Body panel - Aluminium, Wheel Rims - 5 x 14' Mag Wheels, 2 x 50mm solid Axles, Roll Rocker Tandem Suspension 7 Plates, Double Axle Electric Brakes
Breakaway System Fitted to Float (Independent braking system that activates itself when float becomes detached from towing vehicle), 2 Side Windows one on each side 900mm Long x 300mm High tinted and with fly screen, 4 Pop Up Vents approx.400mm x 250mm.

We also make our floats partially aluminium - the frame and chassis are still for strength and flexibility, but the outside sheeting/cladding is aluminium, thicker aluminium and same strength as steel and still corrugated for strength where he horses are. By having the sheeting aluminium, we are lessening the weight and also eliminating rust forever and aluminium does not rust. Basically, everything that is non-structural is now aluminium.

Pop Up Barn Doors with high intensity anti rust struts and special copper hinges or Swing Open Barn Doors which is an optional extra at $400, Ramp Door fitted with high intensity anti rusts strut, Draw bar Filled with Checker Plate, Mudguard covered with Checker Plate, Filled in Checker Plate on Rear Light Panels, 2 Draw bar Safety Chains, Fully Padded Dividers and Breaching Doors  which measure 300mm / 300mm square, 4 Stainless Steel recessed tie up rings on the outside of the float.

Horse Float Lighting:
2 x sets of Rear LED Lights per side - 2 Brake Lights, 2 x Amber Indicator lights and one Reverse Light , 6 Side Amber Lights, 8 Retro Reflectors.  Internal 12v LED Lighting - one above entry door and 2nd LED light at rear of float for night time loading.

Horse Float Flooring:
None slip rubber floor matting ....fully sealed and waterproof, None slip rubber matting for ramp door with extra footing support with horizontal moulded slats / panels for resistance, Rubber matting on side panels.

Horse Float Reinforced Chassis:
We install a safety feature in the float chassis.

A 4mm thick aluminium plate/sheet gets installed in the chassis. How the aluminium sheet works is it guarantees that your horses will never go through the floor of your Gladiator float.

First you have already the reinforced chassis which we use square tubing, not angle bar, across the width of the float along the whole length of the float at 500mm apart which is braced then with angle bar, then the 4mm aluminium plate and then the 22mm honeycomb flooring and then the non slip rubber. This is then all glued down so that the float becomes waterproof and you can wash the float out - the more the better.

This is now a super strong floor guaranteed that your horses will never go through the floor of a Gladiator Float.

Horse Float :
Bench Cupboard with internal opening door /tack cupboard in cone of float with 2 saddle racks and additional external access door to tack cupboard. Aluminium Checker plate Tack box above Mudguard - Optional extra and additional cost $560
Standard Open Rug Rack above front window - Optional extra Enclosed rug rack cost $180 or cupboard additional cost $200
Optional extra Aluminium Checker Plate cupboards additional cost $900

Kitchenette Package -  Optional Extra :
240V electricity connected to float; 240V & 12V Fridge, microwave, 65 litre water tank under float above axles with stainless steel sink and tap,12V pump water pump, external Tap, 240V internal light with On & Off switch, 2 x double power points one on the bench and the other double PowerPoint inside the cupboard. Optional extra which is an additional cost of $3000

Horse Float Paint Work:
2 pack paint work - White as standard with black trim around windows, side door, barn doors and black and aluminium trim around top side of float. Internal 12V lights - one above entry door at the front and one at the rear of the horse float

Should you need further information or have questions relating to this horse float or any other horse float on this website, please contact us by completing the contact form or contact us by calling 1300 445 234
